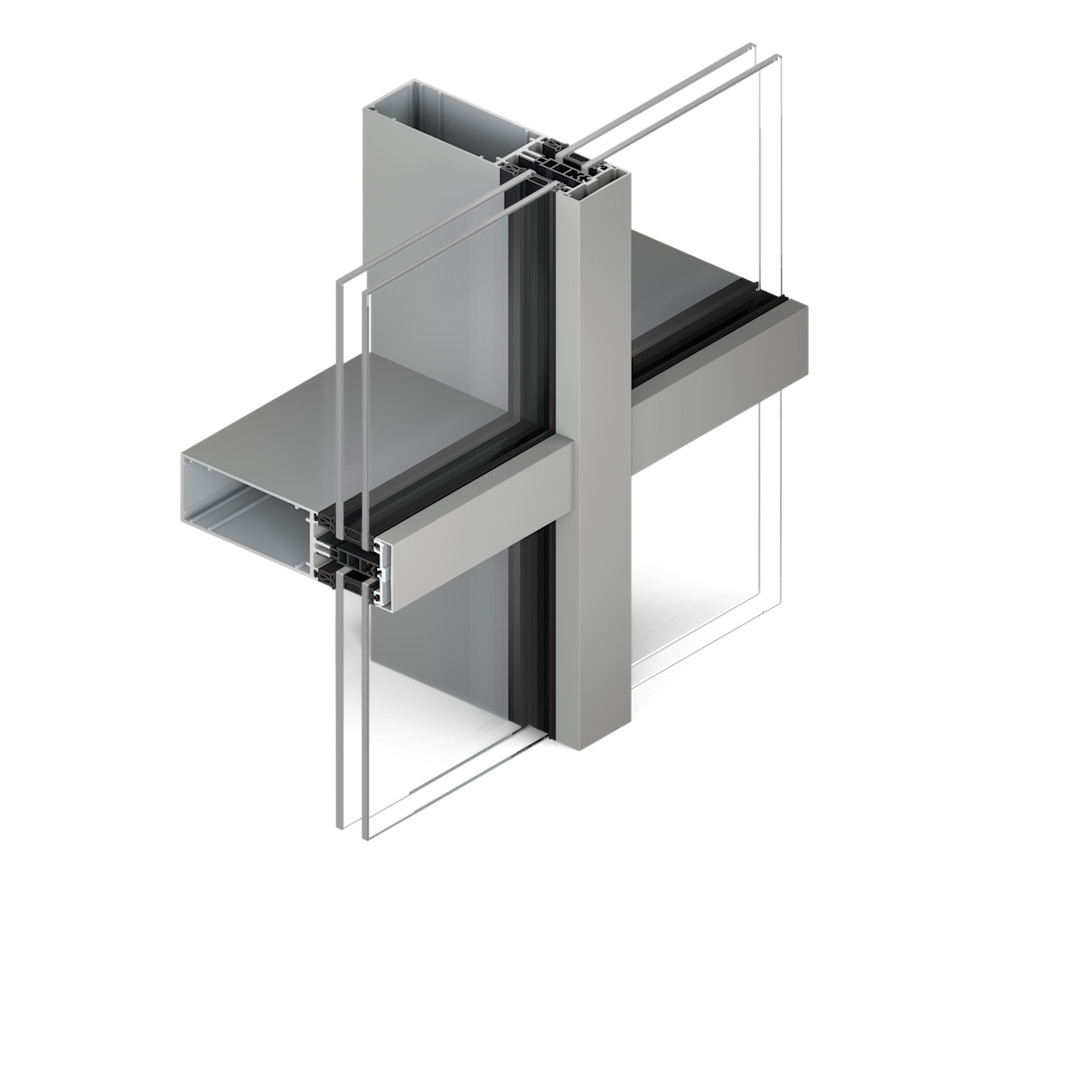

SAPA Tental Curtain Walling

Designed to spark architectural creativity, SAPA TENTAL Curtain Walling features sleek 50mm profiles with minimal sightlines, delivering maximum transparency and excellent thermal performance.

For projects requiring bold visual definition, SAPA TENTAL’s Curtain Walling option provides a structured, modern aesthetic. It offers a range of shaped caps, flexible design options, and advanced thermal efficiency.

Engineered with sustainability in mind, this curtain walling includes high recycled content and is designed for easy disassembly, supporting circular design principles.

Enhance the energy performance and visual identity of your project with a facade that balances design freedom and environmental responsibility.

SAPA TENTAL Curtain Walling is available in a number of variants, each providing unique design features:

  • Feature Caps
  • Horizontal or Vertical Line
  • Flat Cap
  • Structural Glazing
  • Sloped Glazing

Large Sizes

  • Maximum glazing thickness 62 mm
  • Maximum infill weight: up to 850 kg according
    to EN 16758 / EN 17146
  • Large infills up to 12.5 m²

Diversity of Applications

  • Compatible with a full range of present and
    future window, door and sliding systems

Diversity of Forms

  • Dedicated and reinforced transoms
  • Reinforced “tubular” glass supports
  • Heavy load pins between connecting
    transom and mullion

Sustainability

  • Made with at least 75% recycled content
  • 95% recyclable, reducing its environmental impact
  • CO₂ footprint: just 1.9 kg CO₂e/kg Al, up to 80% lower than the European average

Features & Benefits

  • Thermal performance Uf : up to 0.86 W/m²K
  • Acoustic performance: 43dB
  • Air permeability: up to AE 1200 Pa
  • Water tightness: up to RE 1500 Pa
  • Wind pressure resistance: - Service pressure: up to 2000 Pa, Safety pressure: up to 3000 Pa
